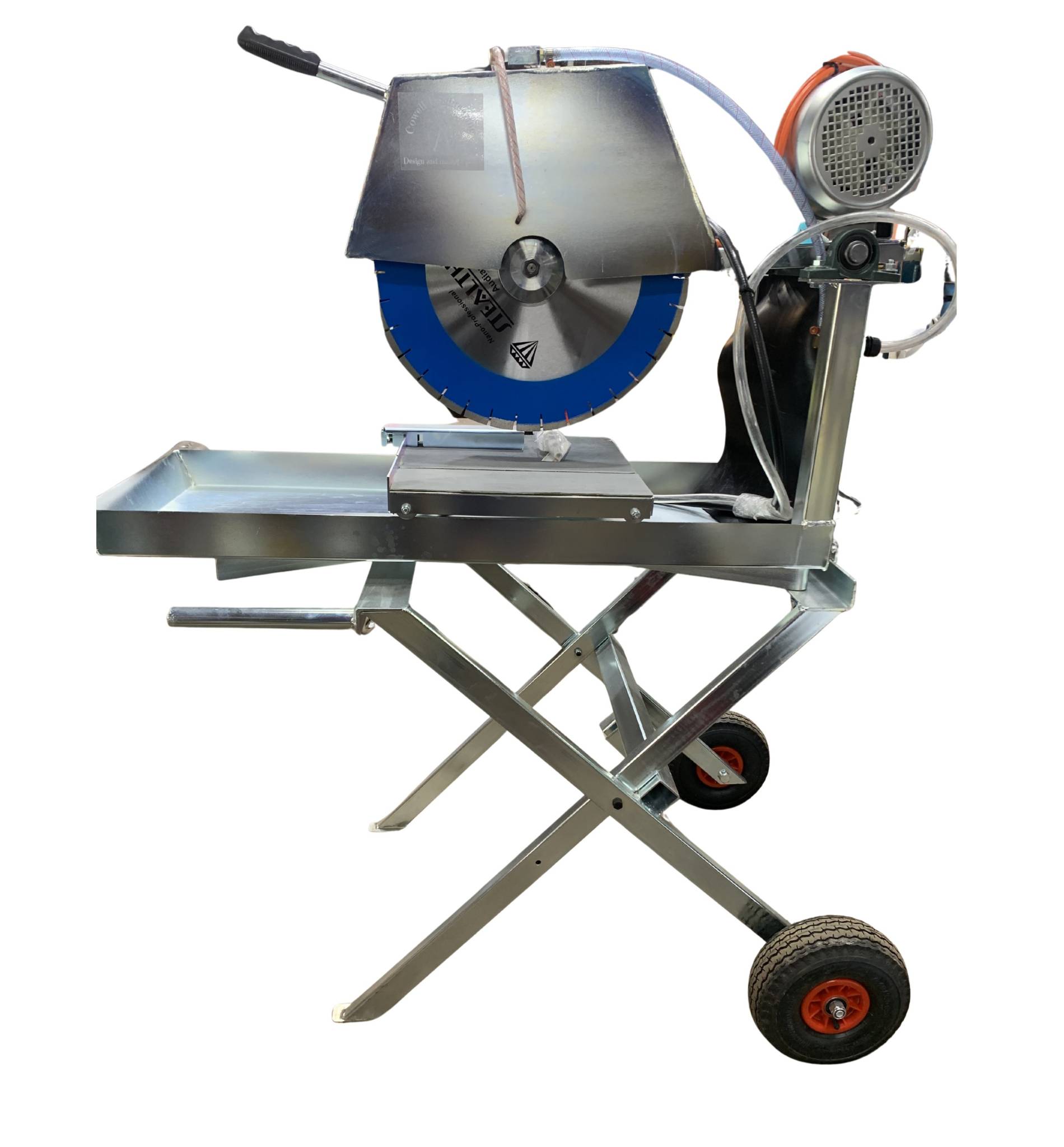

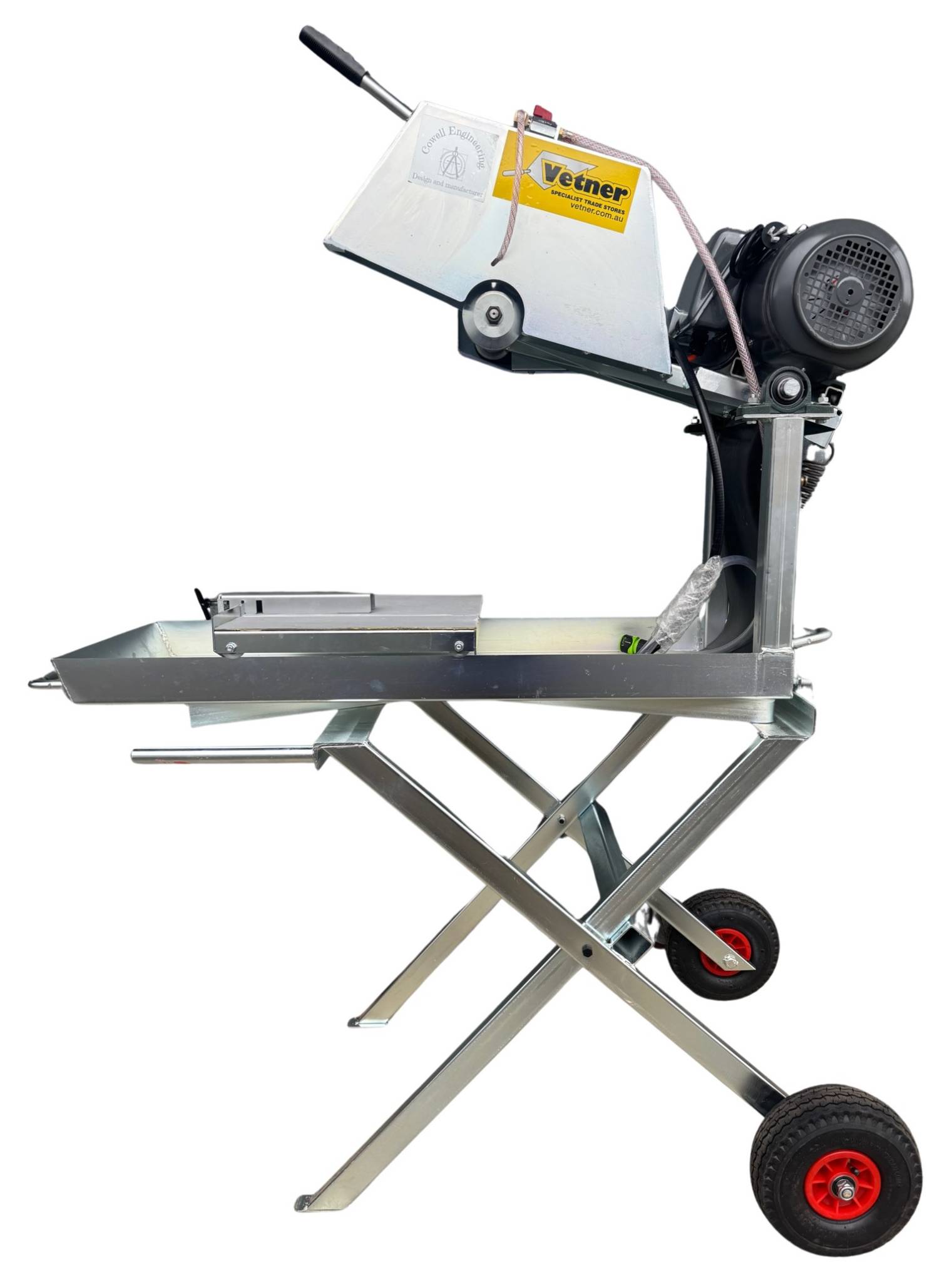

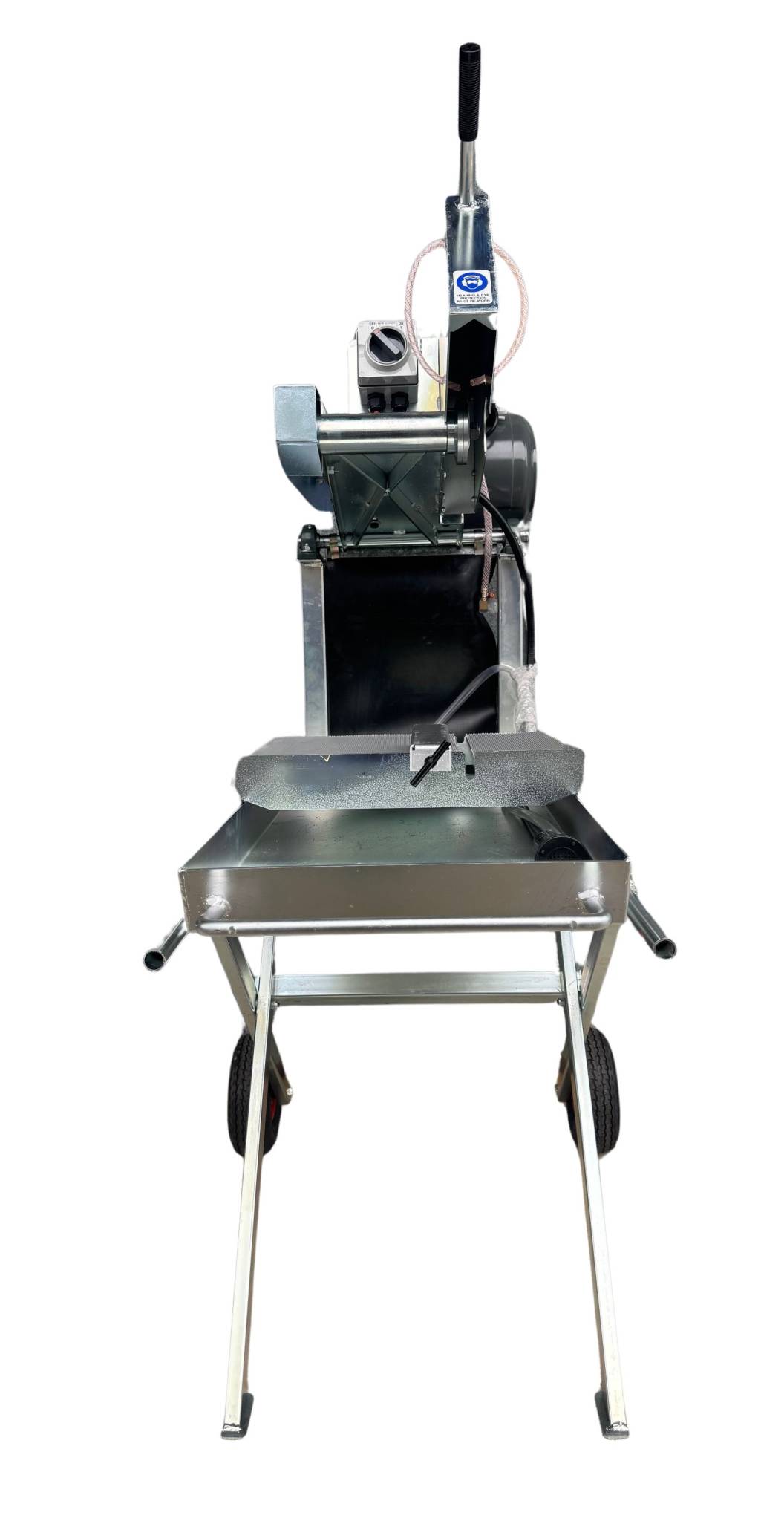

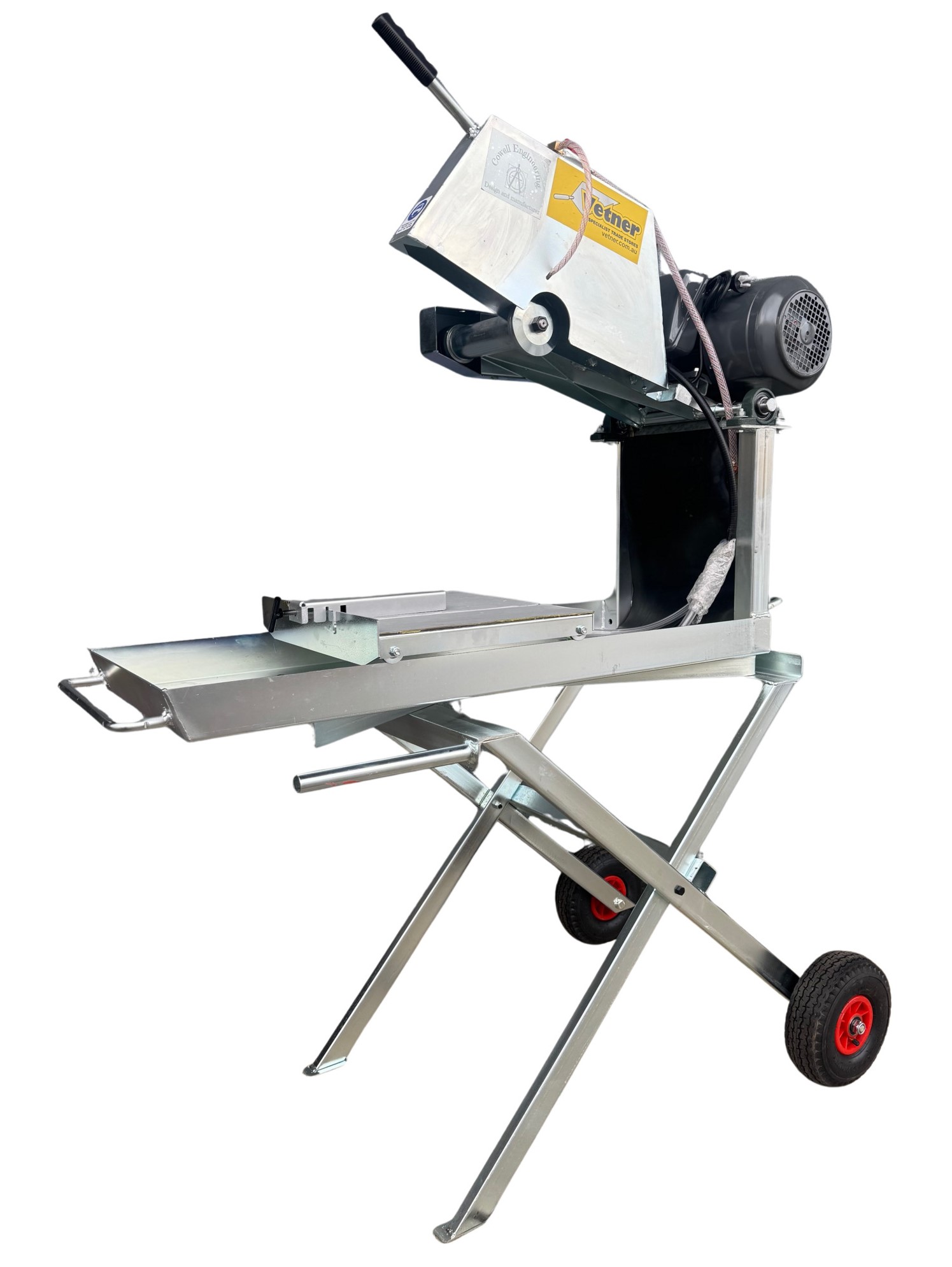

Cowell Engineering 20″ Blocksaw

Fabricated construction for rigidity and lightweight. Cutting head set on sealed pivot bearings and can be locked at any height or left free. Zinc finish.

MOTOR

Purpose built TECO 2.2HP 240 Volt single phase or 3 Phase configuration with Thermal overload. Dual belt drive transmits power to blade shaft through machined pulleys.

BLADE SHAFT, BEARINGS & FLANGES

Adequately dimensioned blade shaft with widely spaced bearings, neoprene sealed for rigidity, long life and accuracy. Flanges precision machined for absolute true running.

BLADE GUARD

Fabricated for strength and safety to accommodate 20″ diameter blade, with water supply tubes and reliable water shut off ball valve.

BLOCK CARRIAGE

Heavily reinforced construction with fluted rubber top for safety and sealed ball bearing wheels. Machined from steel for smooth operating. Zinc finish.

FOLDING STAND

Lightweight and folds flat for space saving transport when not in use. Locking system to secure machine while in use. Zinc finish.

OPTIONAL EQUIPMENT

Water Recirculating pump
