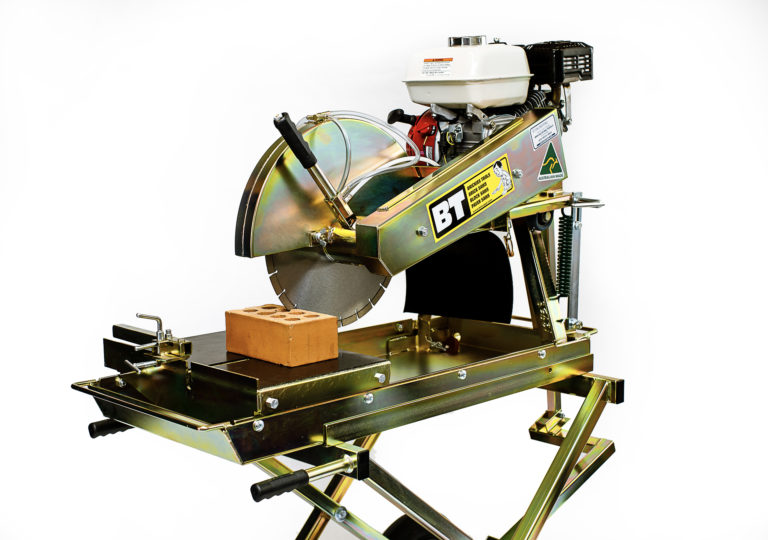

BT Brick Saw 14″/16″ Petrol (New Model) SPRING SUPER SALE

SKU: 10501

Original price was: $3,895.00.Current price is: $3,795.00. inc GST

Make an Enquiry

Description

The iconic BT Petrol Bricksaw , available at Vetner, has been upgraded. This newer model now fits either a 14″ or 16″ Diamond Blade.
With a 50-year history of supporting bricklayers, our products are designed to stand the test of time.

BT Engineering is your Quality Tools Partner

Now for the finer details…

• Engineered optimal dust suppression, with our custom-designed 3-way independent water button. On/Off, hands-free or constant flow water modes.
• Fitted rubber splash guard  reduces water spray and slurry build up
• Customed designed & durable carriage tray with removable mitre guide for precise cuts of any length or shape.
• Lightweight detachable base and stand with puncture proof tyres, ensures easy manoeuvrability onsite and convenient transport.
• Updated blade guard to fit both 14” & 16” blades. Hinged mechanism for continued user protection, effective water disbursement and easy blade changeover.
• 3 cutting options using a fixed position, pull down handle or foot pedal.
• Zinc electroplating ensures the BT Brick Saw repels dust and corrosion for many years of operation.
• Added mounts for belt driven water circulation pumps.
• Plus, a wide range of parts to keep your saw running.

Description

 Motor Specifications:

  • Custom designed Cyclone model
  • Engine type 4-stroke, overhead valve, single cylinder
  • 3/4 keyed horizontal shaft
  • Net power  4.1kW (5.5HP) at 3600 rpm
  • Continuous Rated power 3.7kW (5.0HP) at 3600 rpm
  • 196cc Displacement
  • Unleaded fuel
  • Fuel tank capacity 3.1 Litres
  • Replacement cyclone filters available. 17210-ZE1-505

Blade & Cutting Specifications

  • Blade size ( diameter )
    • Minimum 14″  (355mm)
    • Maximum 16″  (406mm)
  • Blade bore diameter  25.4mm / 1″
  • Depth of cut: 125mm (14″) to 145mm (16″)
  • Length of cut: 500mm
  • Clearance up to 200mm

Carriage Dimensions

  • Length: 310mm
  • Width: 440mm

Bricksaw Dimensions
Assembled

  • Length: 1180 mm
  • Width: 680 mm
  • Height: 1560 mm
  • Weight: 90kg

Packed for transportation

  • Length: 1200 mm
  • Width: 680 mm
  • Height: 800 mm

Blade is not included.  Why ? Because we want you to get the best out of your BT Bricksaw.
The type of blade you use on your bricks & blocks is important!

12 Month Warranty. Made in Australia
